 01.Power Supply >> DC power supply PK1209-10A

  DC power supply PK1209-10A
Product Name:DC power supply PK1209-10A
Product S/N:7920112116
Specification:DC12V10A9Channel
Product Feature:CE&RoHS,PTC fuse,integrated distribution power unit.
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
  Description for PK1209-10A:
  Input Voltage:AC 100-240V
  Input Voltage:Frequency 50/60Hz
  Output Voltage:DC 12V
  Total Output Current:10A
  Total Outputs:9
  Fuse Type:PTC (Resetable)
  Fuse Rating:2A
  Mains power with surge protection
  Internal ON/OFF switch

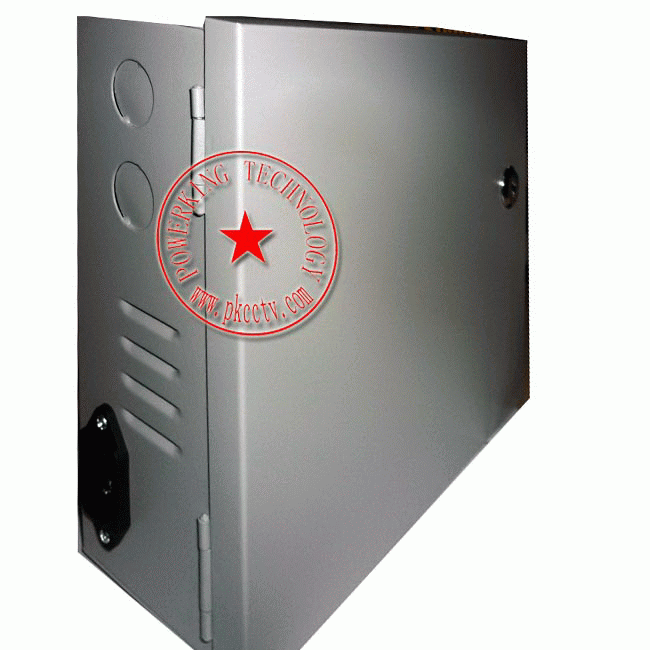

  Metal case with front door keylock

  General Protection:each output has individual PTC fuse and LED indicator, when problem  occurs, only affect the individual output, other outputs still working.
Circuit Short Protection:when short condition occurs, individual PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
  High Voltage Protection:when high voltage occurs, the surge protection  will be hit through to protect the connected device.
  Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
warranty :1 year warranty.
Certificates:CE&RoHS
  Application
  CCTV Camera, PTZ, IR Illuminators, Video Process Equipment, etc. Access Control  Reader, Lock, Panel, etc.
  Cabinet Dimension:24.5 x 21 x 8.7
  Packing Dimension:25 x 21.4 x 9.7
  Net Weight:2.14kg

Model
PK1209-10A
Output Group
9
Output Current
10A
Input Voltage
85 – 265 VAC
Rated Input Voltage
100 – 240 VAC
Input Frequency
50 – 60 Hz
Output Voltage
12V DC
Output Voltage Adjustment Range
10.8 – 13.5V
Max Single Output Current
2A
Average Full-load Current
1.1A
Ripple Voltage
<120mV
Dielectric
strength
Input and Output
AC 3.0 KV, 1min, 10 mA Test
Input and Shell
AC 2.5KV, 1 min, 10 mA Test
Output and Shell
DC 500V, 1 min, 10 mA Test
Function of protect
1、Output short protection
2、Output over current protection 3、Output over voltage protection
Safety Standards
GB4943、UL60950、EN60950-1
EMC Standards
GB9254、EN55022 Class B FCC
Certification
CE、RoHS
Thermal Methods
Natural air convection, metal box conducts heat
Radiation Protection
Metal box shields electromagnetic radiation, Prevents interference
Operation temperature
-20℃ ~ +45℃
Product Dimension
245(L) X 210(W) X 87(H) mm
Packing Dimension
250(L) X 214(W) X 97(H) mm
Weight
2.14 Kg
●     Use of efficient, environmental protection switching power supply
●     Optimization of the shape and structure to facilitate the construction systems
●     Small ripple-video output signal more stable, clearer images
●     Splitter output-by-pass failure to protect other equipment to work
●     Power protection-Output over-voltage protection, over-current
Protection, short circuit protection
●     Material of PCB uses 2 ounce brass and fiberglass plate, with
highly mechanical, anti-inflammation (UL94-V0 grade), it's
best grade in stability, sticking, sobbing, hot decomposition and
expansion, keeps whole product working in best condition.
