 Monitor >> LCD Monitor >> LCD Monitor PK151P-1

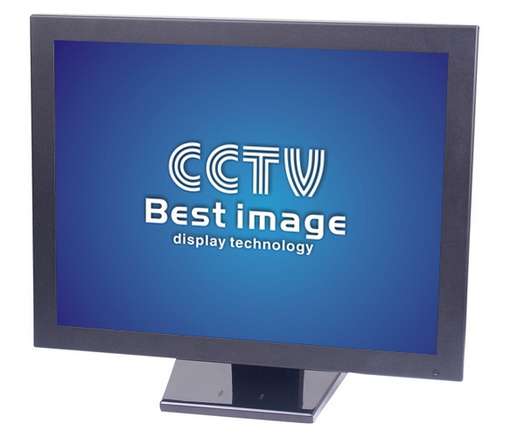

  LCD Monitor PK151P-1
Product Name:LCD Monitor PK151P-1
Product S/N:471740716
Specification:professional 15-inch TFT LCD screen
Product Feature:
Product Class:Monitor
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

 Professol cctv lcd monitor
 model:PK151P-1   picture
 LCD specifications  Size  15inch TFT lcd
 Screen ratio 4:3
 Screen distance 0.297mm×0.297mm(H,V)
 Maximum resolution 1024×768
 Contrast 450:1
 Brightness (cd/m2) 350cd/m2
 Response Time (ms) 8ms
 Perspective H:80°/80°V:80°/80°
 Life (hrs) 50,000(hrs)
Panel Color  "White, black, custom colors users
" "3D digital comb filter (PAL / NTSC)
 3D digital noise reduction
 HD high-definition signals
 "10-bit LCD panel driver a better over-color, smooth vivid
 WCG-CCFL backlight color
 Dual-screen function
Video Standard  PAL/NTSC auto-identification
Support of the resolution    640×480(60/72/75HZ)
Interface 1 Power socket
 2 VGA input
 3 "Analog RGB
 4 BNC1/BNC2 input
 5 BNC output
 6 "Audio input
 7 Audio output
Button panel 1 Menu button
 2 "The left arrow keys
 3 "Right arrow keys
 4 "Video Converter
 5 Power switch
Amplifier / Power 2 × 16 ohms / 3W
Power machine Status of work: 35W (maximum); standby: 1W
Button panel UP,Down,Menu,Power,Left,Right;Mode/ Auto,Menu,Power,Left,Right;Mode
Menu Language "English Chinese; (to be available in multiple languages)
Installation VESA standard mounting hole
Product Architecture "Strong metal chassis, anti-static, anti-magnetic field, strong anti-interference
Temperature / humidity 0 ℃ ~ 50 ℃ / 20% ~ 80% (no condensation)
Storage temperature / humidity -10 ℃ ~ 60 ℃ / 5 - 95% (no condensation)
Appendix A Manual
 "A warranty card
 "AC power cord of a
 "A VGA cable
 "Wall stent (optional)
 "A power adapter
 A certificate
The appearance of size (steel) 359×284×21(mm)
