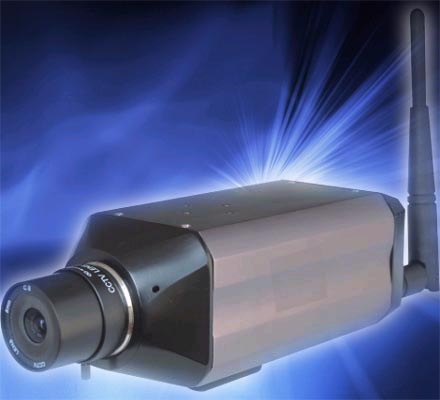

  Werless Box IP Camera PK-A101A
Product Name:Werless Box IP Camera PK-A101A
Product S/N:371450916
Specification:Werless Box IP Camera
Product Feature:
Product Class:09.Camera
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
Products :

﹡Wireless: Wi-Fi, 802.11B/G
﹡Compression format: MPEG-4
﹡Sense organ: 1/3 Sony CCD
﹡Resolution ratio: D1/CIF/FIELD/QCIF
﹡one-way audio voice monitor (built-in mic)
﹡Dynamic IP address: free bundled dynamic domain name, no need to register
﹡Superiority: 2P2 technology, have no restrict on observe numbers
﹡Center management software: 1, 4, 9, 16, 25, 36, and 64 monitor pictures in one screen of client software, and remote access by mobile


Country of Origin:

  • China (mainland)
Primary Competitive Advantages:
  • Country of Origin
  • Guarantee/Warranty
  • Quality Approvals
  • Service
Main Export Markets:
  • Eastern Europe
  • Mid East/Africa
  • Central/South America
  • Asia
Key Specifications/Special Features:
  • CPU:
    • Operation system: embedded Linux OS
    • Microcomputer processor: 32-bit RSIC embedded processor
  • Video:
    • Compression format: MPEG-4
    • Signal system: PAL or NTSC
    • Frame rate:
      • PAL: 25fps
      • NTSC: 30fps
    • Resolution:
      • D1: 720 x 576 pixels
      • CIF: 352 x 288 pixels
      • Field: 720 x 288 pixels
      • QCIF: 176 x 144 pixels
    • Video adjustment: brightness, contrast, chroma, and saturation
    • Sensor: 1/3-inch Sony CCD
    • Horizontal resolution: 420TVL
    • Minimum illumination: 0.1 lux/F1.2
    • S/N ratio: >48dB
    • Shutter speed:
      • PAL: 1/50 to 1/100,000 seconds
      • NTSC: 1/60 to 1/100,000 seconds
    • White balance and backlight balance: auto
    • Lens standard: 3.6 to 8mm CS interface, 6mm (optional)
    • Audio processor: one way audio, MIC inside
    • Audio gain (AGC)
    • P/T control P/T: accept external connection RS485
    • Protocol: PELCO-D protocol
    • Baud rate: 9600 address 1
  • Network:
    • Network interface: RJ-45, 10/100MB self-adaptable Ethernet slot
    • Delay time: < 500 MSEL (0.50 second) in LAN
    • Network protocol: TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPoE, and more
    • Wireless: 802.11b/g Wi-Fi standard wireless network card inside
    • RTSP support: RTSP 3G cellphone (supports Nokia Sybiam S60 system, Microsoft Windows mobile system)
    • Simultaneous visitor: supports 15 direct visitors at the same time, but no limitation when using forwarder server
    • IP mold: dynamic IP address, static IP address, PPPOE
  • Other material: aluminum alloy material
  • Use environment:
    • Wireless gun shape, indoor use
    • Power: 12V DC, 2A
    • Temperature: -10 to 50°C
    • Humidity: 95% RH
  • Size:
    • Item size: 158 x 60 x 59mm
    • Packaging size: 210 x 170 x 85mm
  • Net weight: 445g
  • Gross weight: 845g
  • Accessories: attachment adapter, CD, including introduction, manual, and bracket
