 CCTV Power Supply >> Backup Power supply >> CCTV unintterupt PKB1209-5A

  CCTV unintterupt PKB1209-5A
Product Name:CCTV unintterupt PKB1209-5A
Product S/N:4221235561
Specification:12V 5A 9 Channel
Product Feature:supply DC12V5A current when AC power fails,support one 12V7AH battery
Product Class:CCTV Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

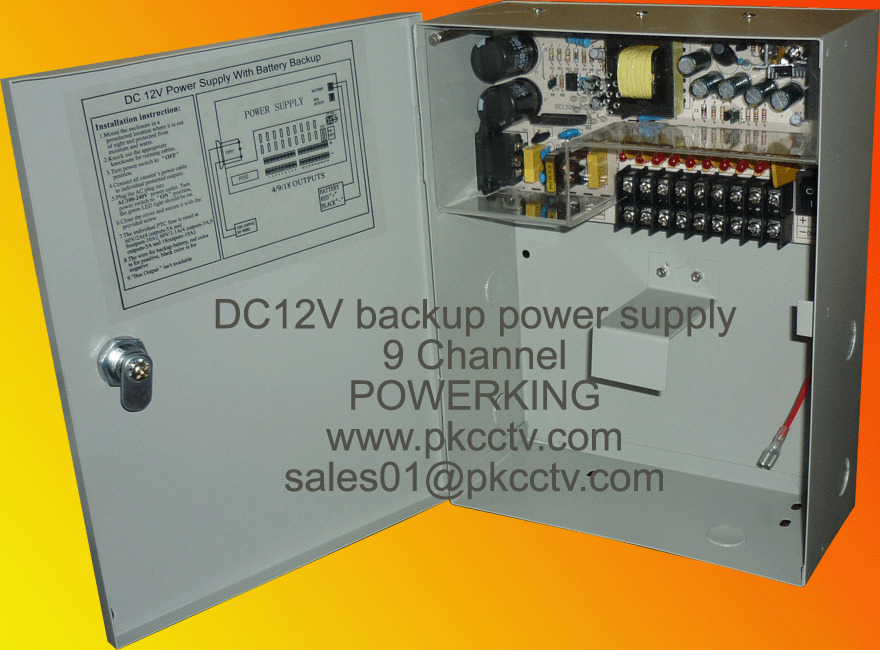

PKB1209-5A is a CCTV unintterupt backup power supply,it can support 1 12V7AH battery.
Specifications：
  • Input 100~240VAC 50 / 60 Hz .
  • 5 amps (60W) supply current.
  • Output 12VDC.
  • Output current:5A
  • Output group：9 Channel
  • Fuset ype：PTC smart fuse
  • Main fuses are rated at 5 amps.
  • individual fuse rate:1.1A
  • Recommended for 12V/7.0Ah battery charging, it need not be disconnected after charge.
  • AC power LED indicator.
  • Short protected outputs.
  • Surge protected outputs.
  • Over charge protected battery / Over discharge protected battery / Polarity in reverse protection
  • Enclosure dimensions(mm): 250H*215W*94D
  • Weight:2.05Kg

Ease of installation saves time and eliminates costly labor.
