 01.Power Supply >> Switching Power Supply >> SWITCHING POWER SUPPLY PKS12V15A

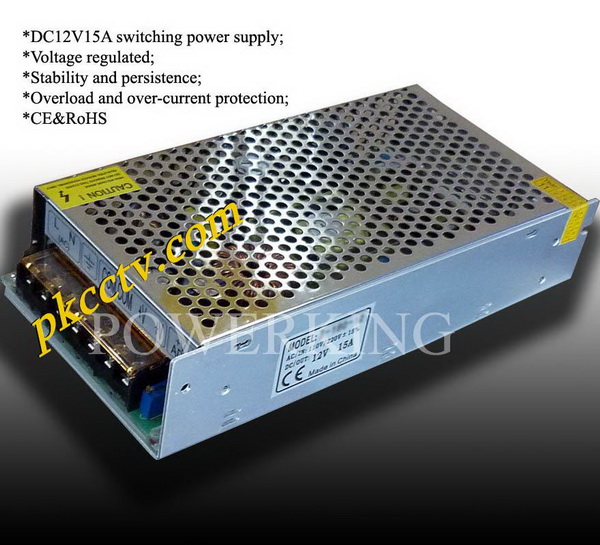

  SWITCHING POWER SUPPLY PKS12V15A
Product Name:SWITCHING POWER SUPPLY PKS12V15A
Product S/N:111021210
Specification:DC12V15A120W
Product Feature:CE&RoHS,Regulated,multi protection
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

Product class:CCTV power supply
Model:PKS12V15A
Certificates:CE&RoHS

AC input selectable by switch
Protection: Overload /Over voltage/Over temperature/Short circuit
LED power on indication
100% full load burn-in test
Built-in EMI filter
1 year warranty
MTBF>50,000 hours

DC12V15A Power supply
AC Input voltage range..............AC88V-132V/AC180-264V (selected by switch)
Input frequency.........................47~63Hz
AC inrush current.......................5A/115V, 30A/230V (cold start)
DC voltage adjustment range......+10%
Output rated current.................15A
Output current range.................0~15A
Rise time..................................50ms@full load (typical)
Hold up time.............................20ms@full load (typical)
Operating temp. & humidity ........-20℃~+55℃, 20%~93%RH (non condensing)
Storage temp. & humidity ...........-40℃~+85℃,10%~95%RH (non condensing)
Cooling ......................................free air convention
Safety standards.........................GB4943, UL60950-1, EN60950-1
EMC standards............................GB9254, EN55022 CLASS A
Withstand voltage.......................I/P-O/P: 1.5KVAC/IMIN
                                                I/P-FG: 1.5KVAC/IMIN
                                                O/P-FG: 0.5KVAC /1MIN
Hits:70586  AddTime:2011-10-21 [Print] [Close]
